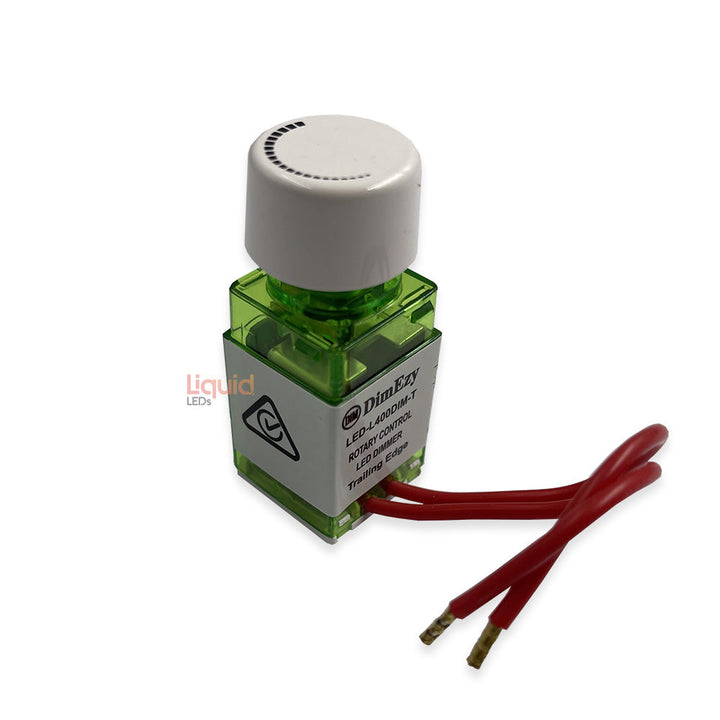

The DimEzy™ Rotary Controlled LED Trailing Dimmer is suitable for 240V dimmable LED loads, maximum LED load 400W. Since it utilises trailing edge technology, it is LED-friendly (fully compatible with LiquidLEDs™ light bulbs), and smoothly dims bulbs to 0% without any flicker and is buzz-free compared to the more common leading edge dimmers. This dimmer comes without a switch wall plate as it is designed to be retrofitted to your existing switch wall plate.
Technical Details
Product Number
LED-L400DIM-T
Nominal Operating Voltage
220-240Vac
Maximum Load
400VA @1 Gang
Minimum Load
5 Watt
Dimming Technique
Trailing Edge Phase Control
Mounting Centres
84mm Australian Pattern Plate
Safety Compliance
AS/NZ3100, AS/NZ3133, IEC60669-2-1
EMC Compliance
AS/NZS CISPR15, IEC60669-2-1 (26.1, 26.2) IEC61000-3-2 (Excepting when used in conjunction with Electronic loads)
Warranty
36 months
