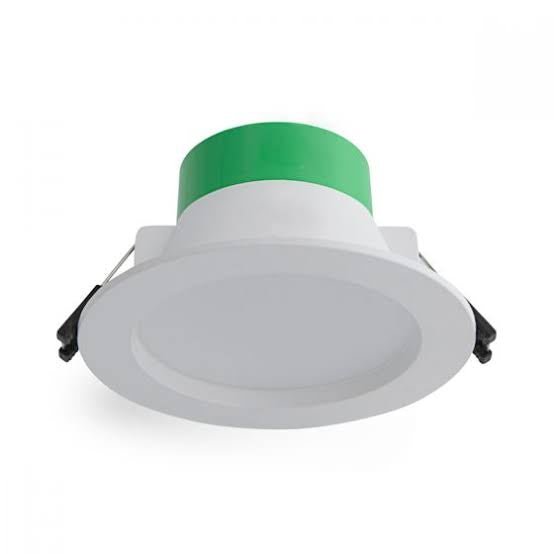

8W LED Downlight with dimmable integral driver – warm white with recessed Diffuser
Features
Built-in Driver
Ideal for Residential, retail, showroom and decorative
IC-4 Rated – According to AS/NZS605982.2:2016
Seamless Look
Mechanical
Adjustability
Fixed
Body Material
Aluminium
Product Finish
Powdercoated
Fitting Colour
White
IC Rating
IC-4
IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments.
Installation Type
Recessed
IP Rating
IP44 Front Face Only
Electrical
Electrical Rating
Class II
Input Frequency
50 Hz
Input voltage
230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
8 W
Switch Type
Inline
Working Temp Range
5 to 40 °C
Lamp
Beam Angle
90 °
CCT Configuration
3000K
CRI
>80
LED Type
Diffused
Number of Lamps
1
LED Lifetime
LED Lifetime
36000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Rating
L70B10 (6k)
TM-21 Test Hours
6000 hrs
Colour temperature
8 Watts
Warm White (3000)
670 lm
Driver
Dimmable
Yes
Driver Included
Yes
Integrated Driver
Yes
Driver Type
Dimmable ( Phase cut)
Wiring Type
Non rewireable Flex & Plug
Compliance
Product Design Life
10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use
10 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
AS/NZS 60598.1
AS/NZS 60598.2.2
AS/NZS 61347.1
AS/NZS 61347.2.13
AS CISPR 15
Warranty
Commercial Use Warranty
3 RTB (Total 3 Years)
Domestic Use Warranty
3 (Yr) RTB
Operational Lifetime
30000 hrs
