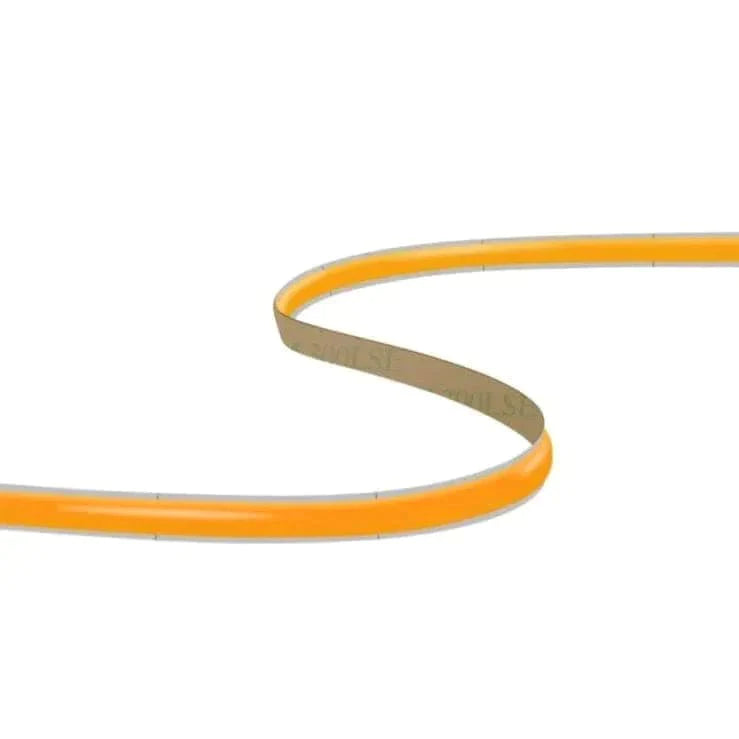

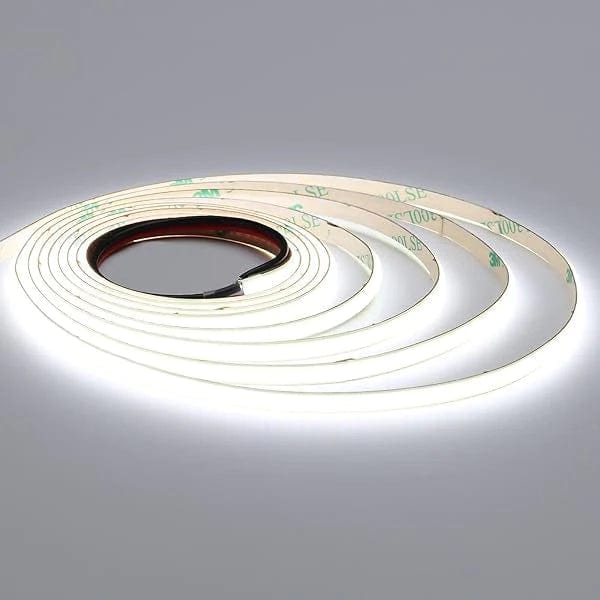

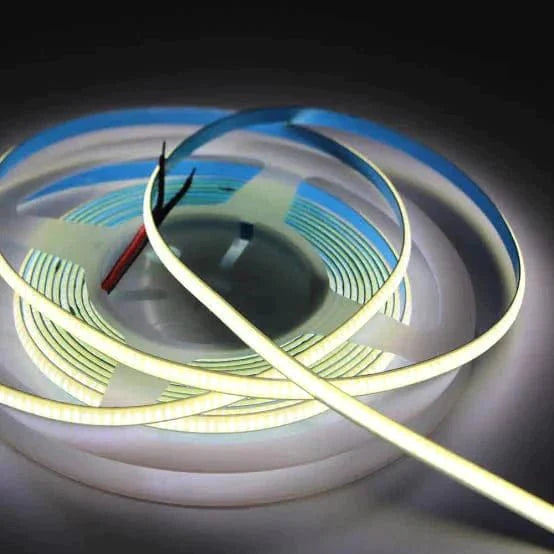

COB flexible strip light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light. Ideal for installations where the LED strip will not be mounted within profile but seen. The dotless design also allows the use of a less opaque (diffused) profile cover. This allows more light to transmitted without having to minimise dots.
This LED strip light is rated at 5W/m
CRI is >90, which provides very high true colour representation.
COB is an acronym for: Chip on Board
The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.
The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.
This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.
Requires 24V driver (sold separately)
Choose from a range of drivers to match the length of flexi-strip required
Remote, wall mounted and CONNECT Wi-Fi controllers available as accessories
For runs over 5m individual lengths should be connected in parallel
Easy clip connector packs available as accessories
Electrical Data
Voltage
24 VDC
Wattage 1m
5 W
Current 1m
0.45 A
LED Data
Package Type
COB (Chip on Board)
Chips LED
1
LEDs 1m
480
Photometric Data
Colour Temperature
6000K
Colour Rendering Index Ra
>90
Luminous Flux 1m
400
Luminous Efficacy
80
Beam Angle
120°
Dimmable
1 ∼ 100%
Construction / Protection Data
Substrate
Double layer FPCB 3oz
Mounting
Double sided tape 3M 9080
IP Rating
IP20
Operating Temperature
-20 ∼ +70 C°
Storage Temperature
-20 ∼ +50 C°
Dimensions
Cutting increments
50.0mm
Length
5m
Width
3.0mm
Height
1.2mm
Lifetime
Working Life
50,0000 hrs
