Features: Thermal conductive heat dissipating silicone extrusion
Product Benefits: The COB IP68 LED Strip in silicone extrusion is a world first patented technology that utilises and incorporates thermal conductive heat dissipating silicone extrusion to eliminate the need for LED strip to be mounted on aluminium extrusion for the purpose of a heat sink.
This technology allows the strip to have greater flexibility, smaller dimensions and makes this strip suitable for both indoor and outdoor use. With an IP rating of 68, Hybrid Neon Flex is even suitable for submersion in water beyond 1 meter depth.
How To Order
To order the stop light to a specific length (eg 1.3 meters) simply choose the “per meter length” option.
As this strip is charged as a per meter length simply choose quantity 2 and add to cart. You can then “add cart note” and type in the cart note that you require the strip to be 1.3 meters in length.

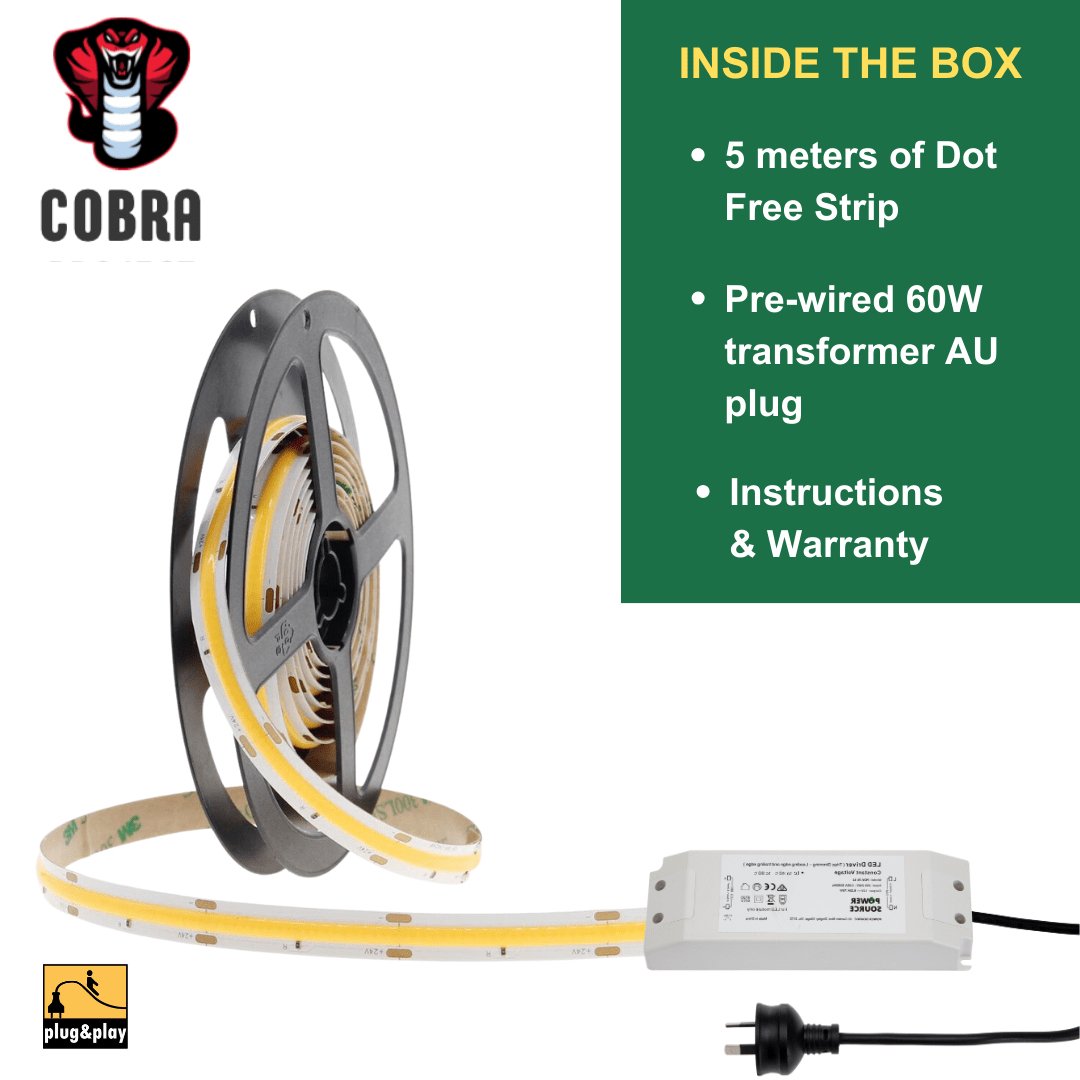

Alternatively you can choose to order a 5 meter uncut reel of strip and cut it on site to suit your required length. This strip is sent with a couple of end caps to seal the strip once it is cut to ensure it remains IP rated.
LED Driver Required
To operate the LED strip you will need to connect the strip to a 24 volt constant voltage LED driver. This strip has a power rating of 9 watts per meter. To safely operate the strip we recommend a minimum of 11 watts per meter. Based on this theory, if you are operating 1.3 meters of strip we would recommend the 24 volt 20 watt constant voltage LED driver.
We can supply a LED driver attached to your custom strip upon request to allow for DIY installation. To make this request please “add cart note” to your order.
Product series SKU: IP689W4K
Output Voltage: 24V
Output Power/Wattage Per Meter: 9W/m
Lumens Per Meter: 700lm/m
CRI: 90+

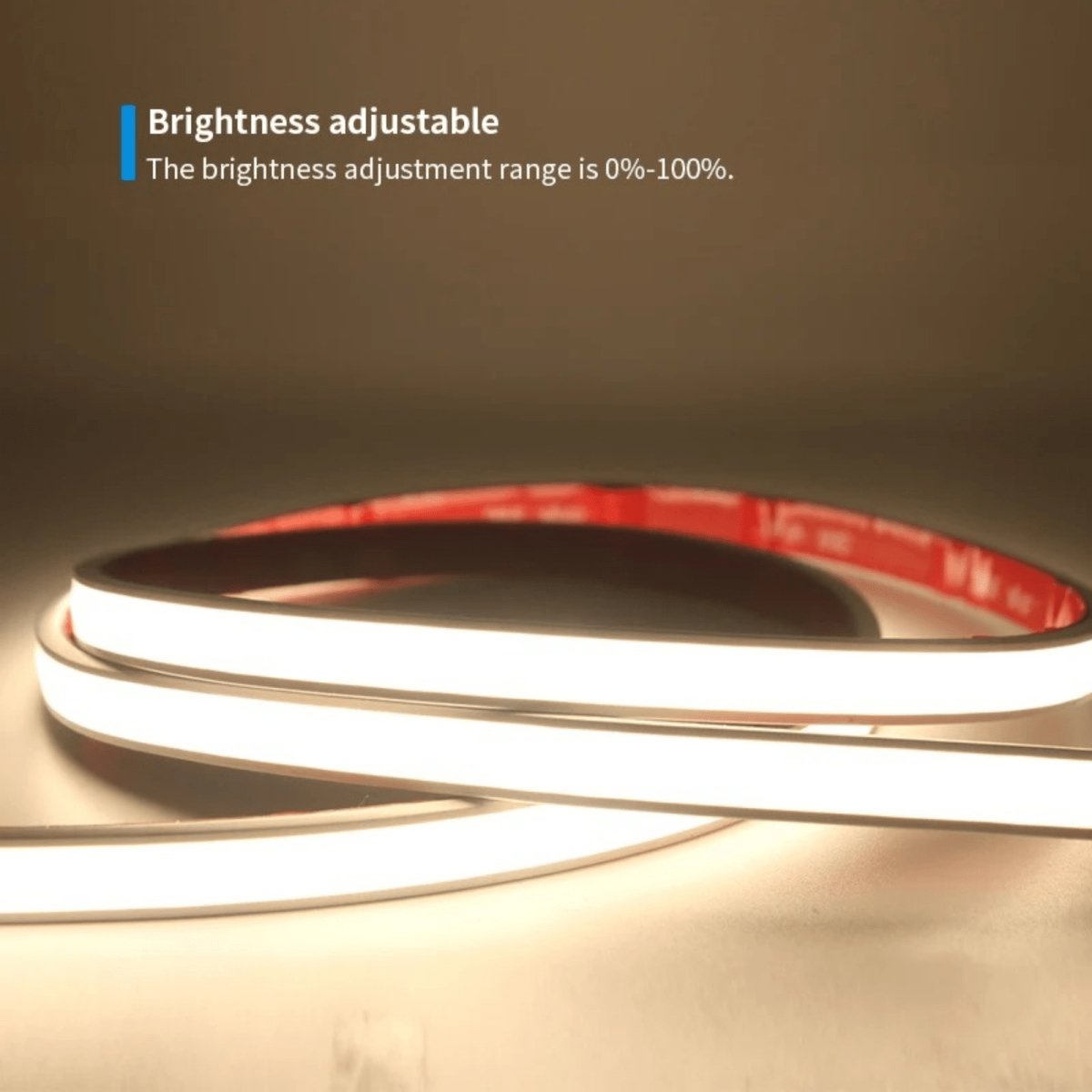

Support Dimmer: Yes

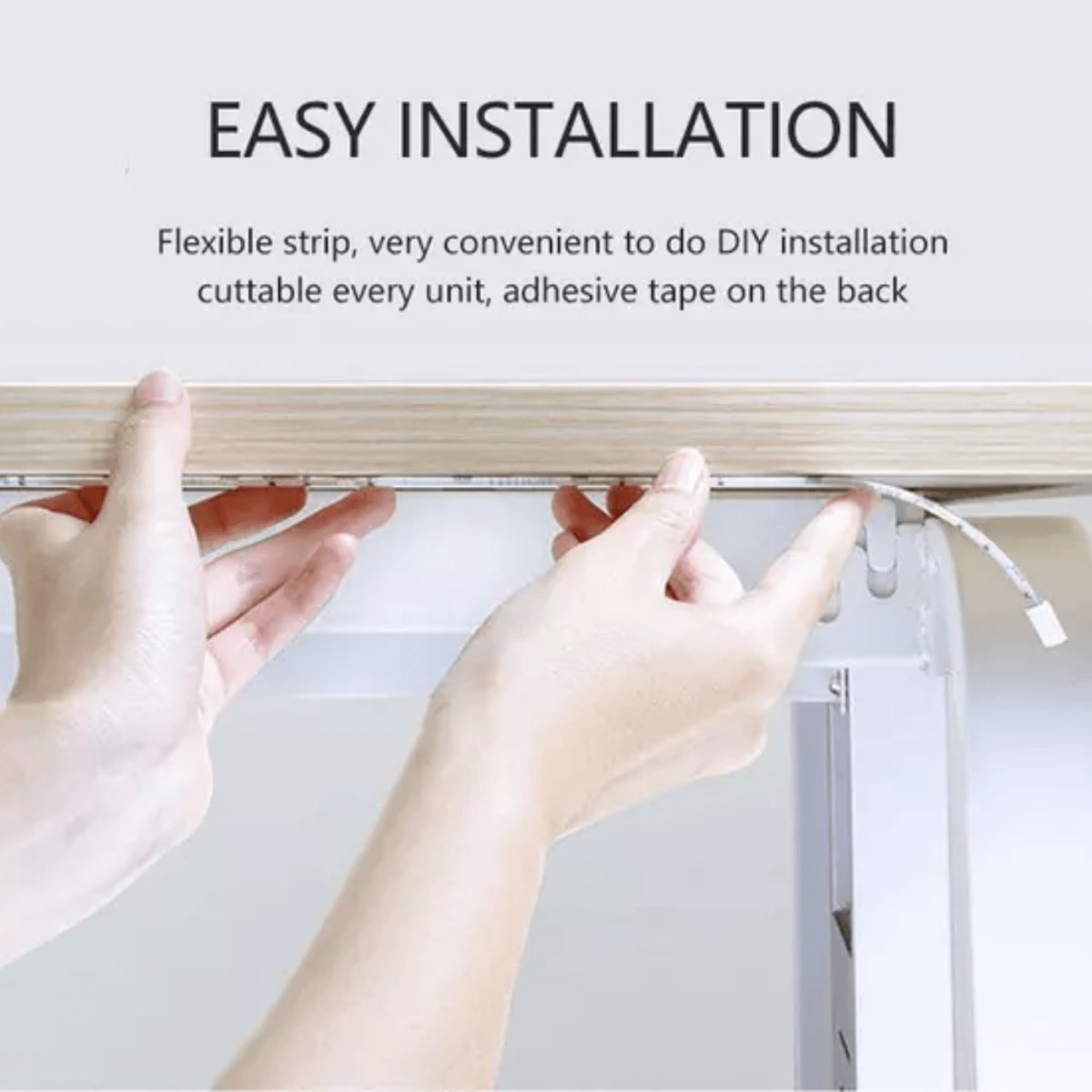

Self Adhesive: 3M branded backing tape
Driver Type: Constant Voltage (24V)
LED Chip: Cree COB
LED Chips Per Meter: 480

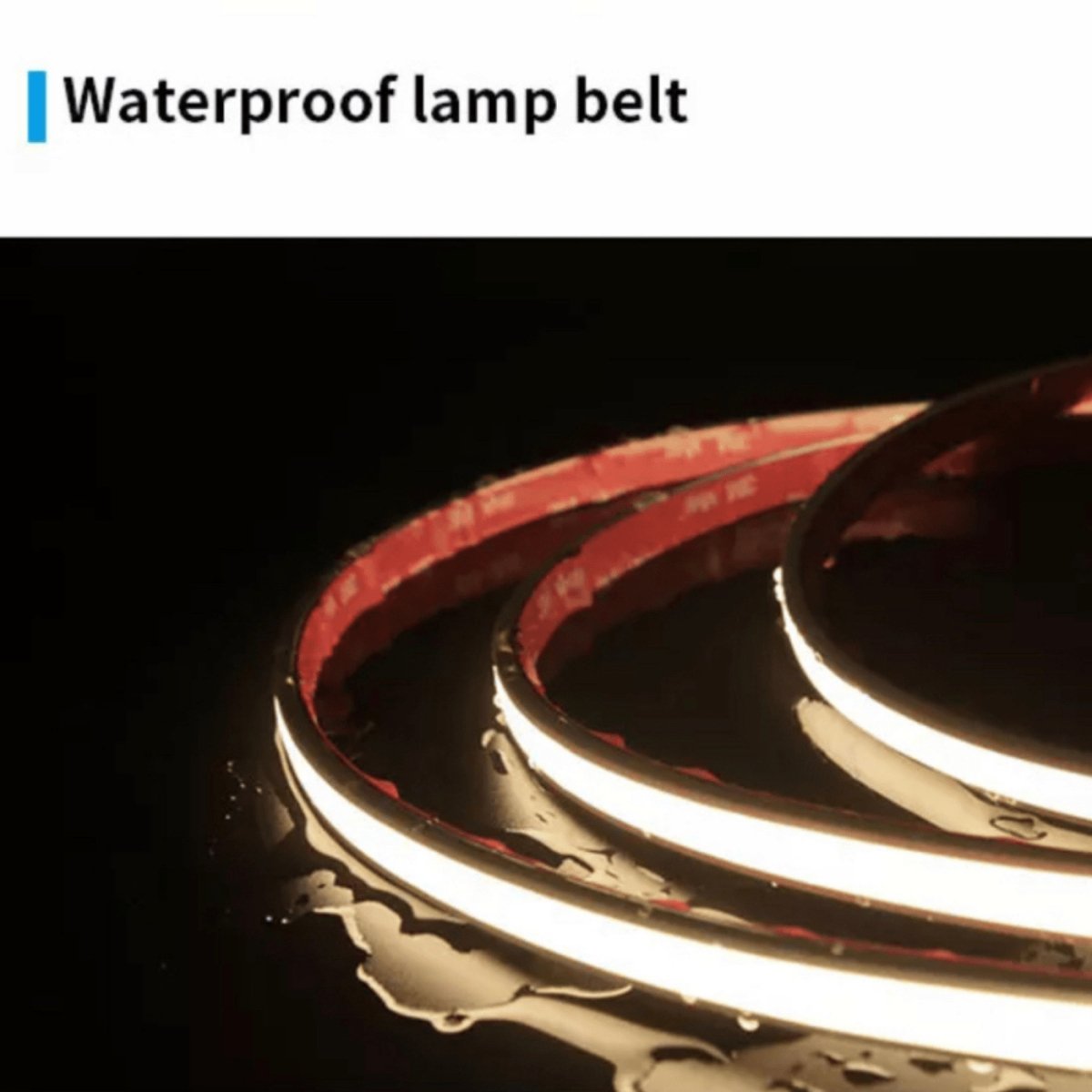

IP rating: IP68

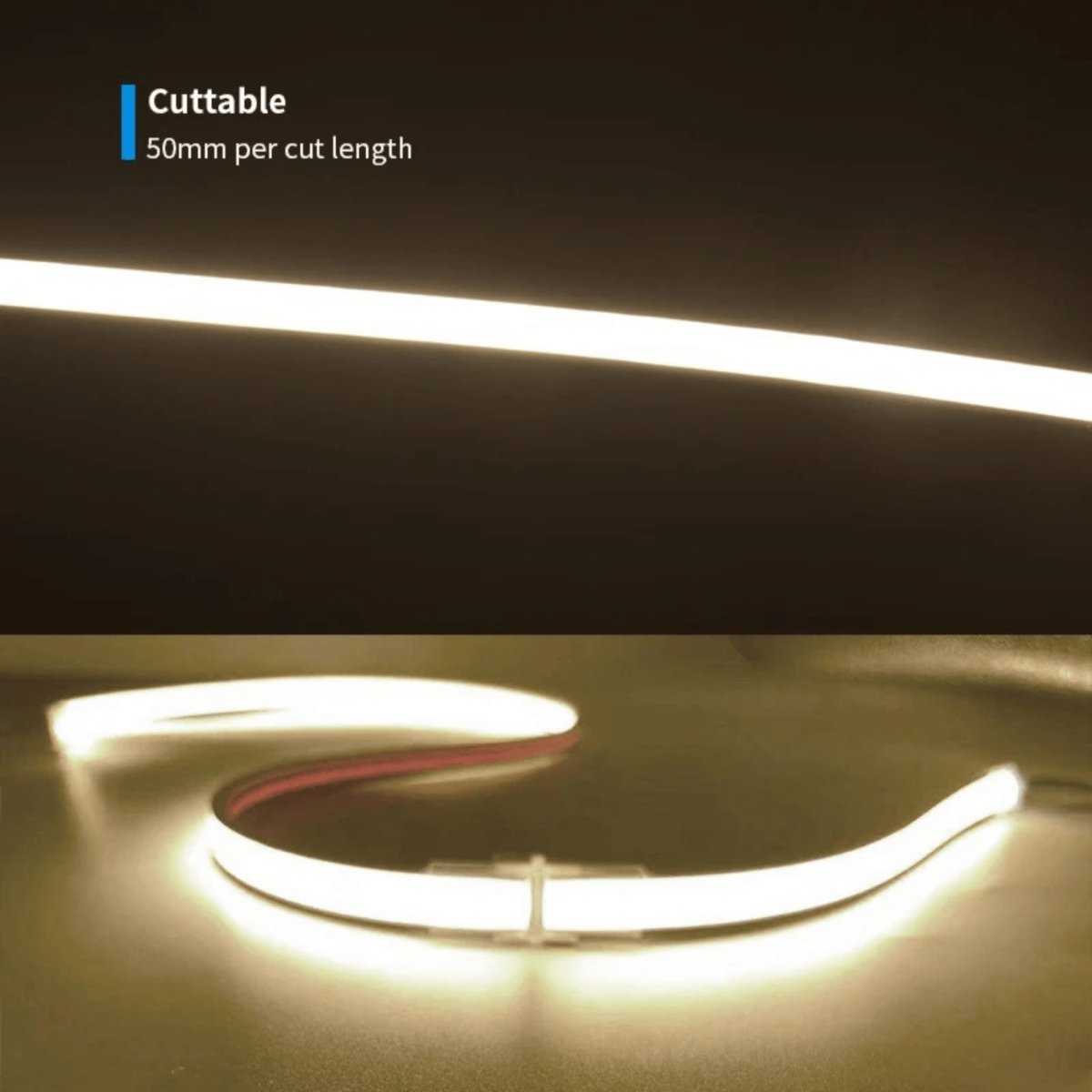

Cut Intervals: 50mm
Warranty: 5 Years
Product Dimensions: 10mm x 2mm
