The use of COB technology means the visible dots are almost eliminated. This gives the added advantage of not requiring a profile and lens to diffuse the unsightly dots.

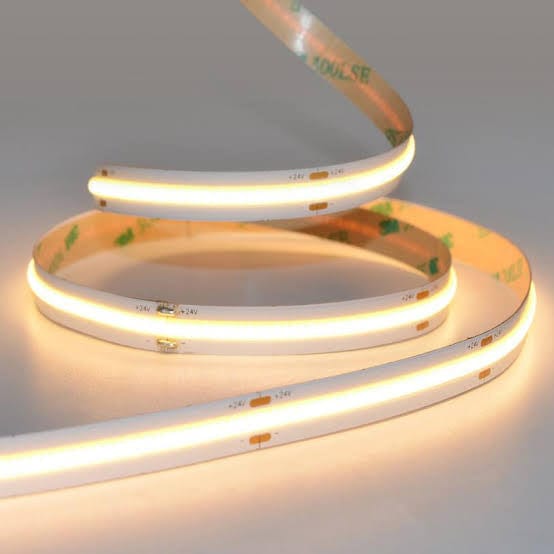

COB flexible strip light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light. Ideal for installations where the LED strip will not be mounted within profile but seen.
This PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.
This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.
Requires 24V driver (sold separately)
Choose from a range of drivers between 60W and 200W to match the length of flexi-strip required
Remote, wall mounted and CONNECT Wi-Fi controllers available as accessories
For runs over 5m individual lengths should be connected in parallel
Easy clip connector packs available as accessories
Electrical Data
Voltage
24 VDC
Wattage 1m
16 W
Current 1m
1.26 A
LED Data
Package Type
COB
Chips LED
N/A
Chips 1m
840
Photometric Data
Colour Temperature
RGB (Red, Green, Blue) + 3000K
Colour Rendering Index Ra
N/A
Luminous Flux 1m
N/A
Luminous Efficacey
N/A
Beam Angle
120°
Dimmable
1 ∼ 100% (refer data sheet)
Construction / Protection Data
Substrate
Double layer FPCB 3oz
Mounting
Double sided tape 3M 9080
IP Rating
IP20
Operating Temperature
-20 ∼ +70 C°
Storage Temperature
-20 ∼ +50 C°
Dimensions
Cutting increments
50.0mm
Length
5m (Priced per meter)
Width
10.0mm
Height
5.0mm
Lifetime
Working Life
70,0000 hrs
